Marconi / IFR · Signal generator · c.1984 on
Marconi Instruments, the GEC test-equipment maker that settled in Stevenage, built the 2019A as the 1040 MHz partner to the 520 MHz 2018A, and their service manual dates from 1984. Both are synthesized AM/FM generators locked to a crystal reference, and the 2019A adds a frequency doubler to reach 1040 MHz with the same -127 to +13 dBm output range. You get AM, FM and phase modulation from six internal tones or an external source, 10 Hz steps up to 520 MHz, three LCD windows and a keypad. A reed relay protects the output against up to 50 W of reverse power, handy on a radio bench. GPIB was an option, and a second-function menu shows the total hours the generator has run. Marconi was sold to IFR in 1998, which is why later generators in this line carry the IFR name.
Options and accessories
Check the listing photos and the rear panel against this list, and ask the seller about anything you can’t see. A missing option or probe should come off the price.
We couldn't find a well-documented common fault for the 2019A. Check the output level and the LCDs, since a unit that's had a transmitter keyed into it or a failing display shows up there first.
New to used bench gear? How to check used test equipment covers self-tests, fuses, the voltage selector and shipping, and what “calibrated” means in a listing.
Buying guide
We'd buy semiequip's 2019A at $775 delivered, because it's the only one shipping from inside the US, it comes from a test-equipment dealer, and its photo shows the displays lit. Only 4 are for sale, so the $700–1,025 band isn't a market read, and the other three ship from Italy, Israel and Kuwait, where they may well be set for 230 V. The two mains selector switches sit under a locked cover plate, so ask what range it's set to before you power it on, and ask for a photo of all three LCD windows with complete digits plus a 0 dBm reading on a power meter. We'd pass on the Kuwait seller at 97.4% feedback for a $1,150 delivered generator.
$557.76est. delivered

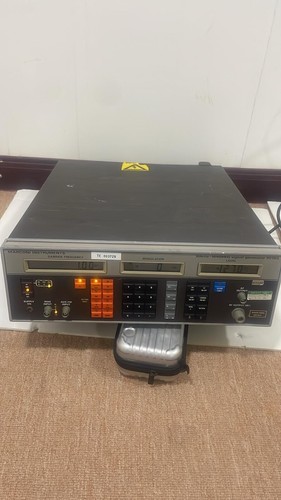

The lowest delivered 2019A at $558 from Italy, and the photo shows all three LCD windows lit. It may be set for 230 V, so ask what the mains selectors under the cover plate are set to.
Marconi 2019A 80kHz - 1040MHz Signal Generator
$775.00est. delivered

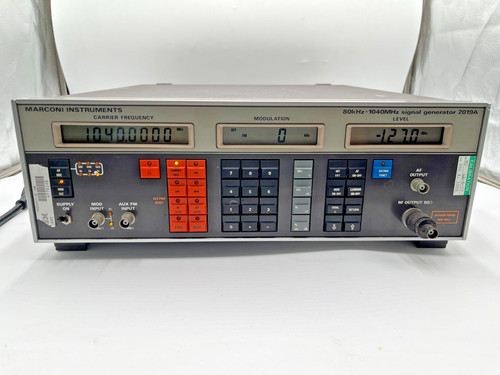

A US dealer's unit at $775 delivered, with the displays lit in the photo. Ask for the elapsed-hours reading and a 0 dBm output on a power meter.
Marconi 2019 A Signal Generator
Delivered prices include shipping as eBay quoted it to a US address on Oct 14, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Snapshot
Checked . Some may have sold.
Delivered prices include shipping as eBay quoted it to a US address on Oct 14, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Used$557.76est. delivered
$501.98 + $55.78 shipping
Buy It Now$501.98
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
Ships from Italy. Photo shows all three LCDs lit. Check the mains setting.
Seller: 19102165
100% positive
Used$775.00est. delivered
$550.00 + $225.00 shipping
Buy It Now$550.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
US dealer, $225 shipping. Photo shows the displays lit.
Seller: semiequip
100% positive
Used$970.00est. delivered
$750.00 + $220.00 shipping
Buy It Now$750.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
Ships from Israel, $220 shipping. Photo shows it switched off.
Seller: zuse81
100% positive
Used$1,150.00est. delivered
$900.00 + $250.00 shipping
Buy It Now$900.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Check the seller
97.4% seller shipping from Kuwait, $250 shipping.
Seller: wholesale.yard
97.4% positive
Prices change daily. The live eBay search shows everything listed now, including anything new since Oct 14, 2026.
