The 8506A is the thermal-RMS half of a pair of Fluke system meters, and the 8505A is its sibling. Fluke's 1990 catalog calls them its most advanced bench and system DMMs. Both read DC to 6½ digits, or 7½ on the 10 V range in averaging mode, using a Fluke-patented recirculating-remainder converter that keeps 6½ digits at up to 500 readings a second. What makes the 8506A special is AC. Instead of a calculating true-RMS chip it uses a fast thermal RMS sensor, specified from 10 Hz to 1 MHz with 120 ppm basic accuracy, which Fluke said approaches traditional thermal transfer measurement at DMM speed. It's modular, so what a unit can do depends on its boards: resistance, current and the computer interface were all options. Ask which ones are fitted before you buy.
Options and accessories
Check the listing photos and the rear panel against this list, and ask the seller about anything you can’t see. A missing option or probe should come off the price.
We couldn't find reliable repair records for the 8506A, so ask questions rather than assume. A unit missing its ohms, current or interface board does less than the catalog says, and at around 10 kg it needs careful packing.
New to used bench gear? How to check used test equipment covers self-tests, fuses, the voltage selector and shipping, and what “calibrated” means in a listing.
Buying guide
We'd buy the 8506A titled fully loaded with modules and GPIB, and tested, at $636 with free shipping, because the option boards decide what an 8506A can do. Only 8 are for sale and three are one dealer's units at $5,039 delivered each, so the $390–5,050 band isn't a market read, and the other five ask $351–690 delivered, three of them shipping from Canada for $73–133. Ask which option boards are fitted by number, since without -02A it can't measure resistance, and ask for a photo of the display after warm-up reading a known voltage. At about 10 kg it needs a double box with foam all round, so ask how it'll be packed.
$351.28est. delivered
The lowest delivered 8506A at $351, shipping from Canada with its instruction manual, and the photo shows the display lit. No options are titled, so ask which boards are fitted before you count on resistance or GPIB.

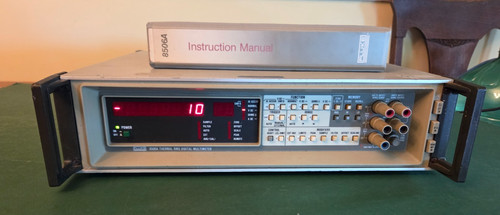

Fluke 8506A/CT Thermal RMS Digital Multimeter & Instruction Manual
$636.00delivered
Titled fully loaded with modules and GPIB, and tested, at $636 with free shipping. Fully loaded can't mean every option, since -02A and -03 can't share the meter, so ask for the option numbers and whether the top cover in the photo comes with it.

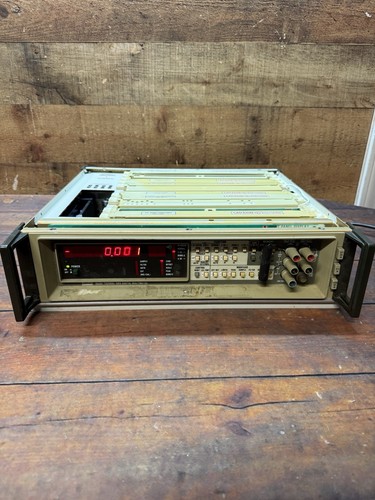

Fluke 8506A RMS Multimeter Fully Loaded w/ Modules GPIB Tested
Delivered prices include shipping as eBay quoted it to a US address on Oct 14, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Snapshot
Checked . Some may have sold.
Delivered prices include shipping as eBay quoted it to a US address on Oct 14, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Used$351.28est. delivered
$266.07 + $85.21 shipping
Buy It Now$266.07
Good buy
Ships from Canada, $85 shipping. Titled with the manual, no options titled.
Seller: bagger69p
100% positive
Used$636.00delivered
$636.00 · free shipping
Buy It Now$636.00
Good buy
Titled fully loaded with GPIB, and tested. Photo shows the top cover off.
Seller: bchagarov3702
99.6% positive
Used$388.21est. delivered
$315.07 + $73.14 shipping
Buy It Now$315.07
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
Ships from Canada, $73 shipping. No options titled, so ask which boards are fitted.
Seller: ecotechrdr
99.7% positive
Used$395.80est. delivered
$262.57 + $133.23 shipping
Buy It Now$262.57
Our take

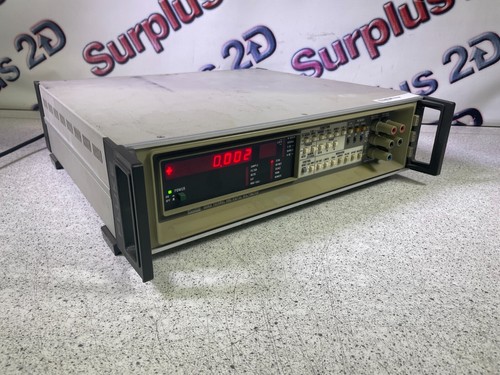

Ships from Canada, $133 shipping. No options titled, so ask which boards are fitted.
Seller: torontosurplus
100% positive
Used$689.99est. delivered
$649.99 + $40.00 shipping
Buy It Now$649.99
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take

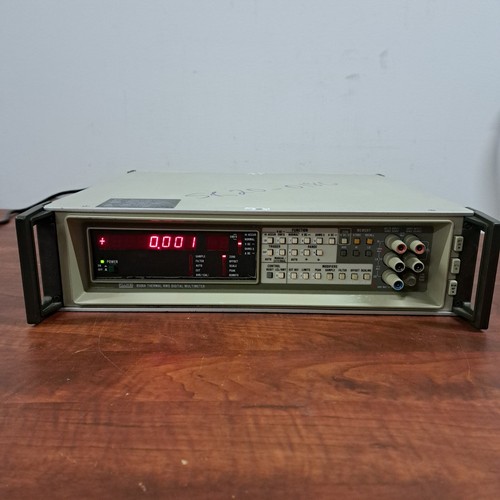

Titled with Options -02A (ohms) and -05 (GPIB).
Seller: enjoy2011
98.7% positive
Used$5,038.56est. delivered
$4,950.00 + $88.56 shipping
Buy It Now$4,950.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Priced high
Titled Opt. 02A with GPIB. About 7.6 times the $663 median here.
Seller: alltest_instruments
99.5% positive
Used$5,038.56est. delivered
$4,950.00 + $88.56 shipping
Buy It Now$4,950.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Priced high
Titled Opt. 02A with GPIB. About 7.6 times the $663 median here.
Seller: alltest_instruments
99.5% positive
Used$5,038.56est. delivered
$4,950.00 + $88.56 shipping
Buy It Now$4,950.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Priced high
Titled Opt. 02A with GPIB. About 7.6 times the $663 median here.
Seller: alltest_instruments
99.5% positive
Prices change daily. The live eBay search shows everything listed now, including anything new since Oct 14, 2026.
